Multi-Variate Pattern Analysis (MVPA)¶

Computational Methods in Psychology and Neuroscience¶

Psychology 4215/7215 --- Fall 2023¶

By: Per B. Sederberg, PhD

Lesson Objectives¶

Upon completion of this lesson, students should have learned:

  1. A quick fMRI primer
  2. A dash through MRI preprocessing
  3. Standard first-level GLM analysis
  4. Multivariate pattern analysis

Quick fMRI primer¶

Arthurs & Boniface (2002) (From Arthurs & Boniface, 2002, Trends in Neurosciences)

The slow hemodynamic response¶

HRF

(From Barth and Poser, 2011)

No neuroimaging modality is perfect...¶

... Trading off spatial and temporal resolution.

Neuroimaging Modalities

(From Sejnowski, Churchland and Movshon, 2014, Nature Neuroscience)

NiLearn for Neuroimaing in Python¶

You're going to need some new libraries for processing neuroimaging data:

conda install -c conda-forge nilearn
In [ ]:
# import some useful libraries
import numpy as np                # numerical analysis linear algebra
import pandas as pd               # efficient tables
import matplotlib.pyplot as plt   # plotting
from scipy import stats
import os

# import nilearn stuff
from nilearn import plotting, image

Data from OpenNeuro¶

A free and open platform for validating and sharing BIDS-compliant MRI, PET, MEG, EEG, and iEEG data.

Flanker task (event-related)¶

https://openneuro.org/datasets/ds000102/versions/00001

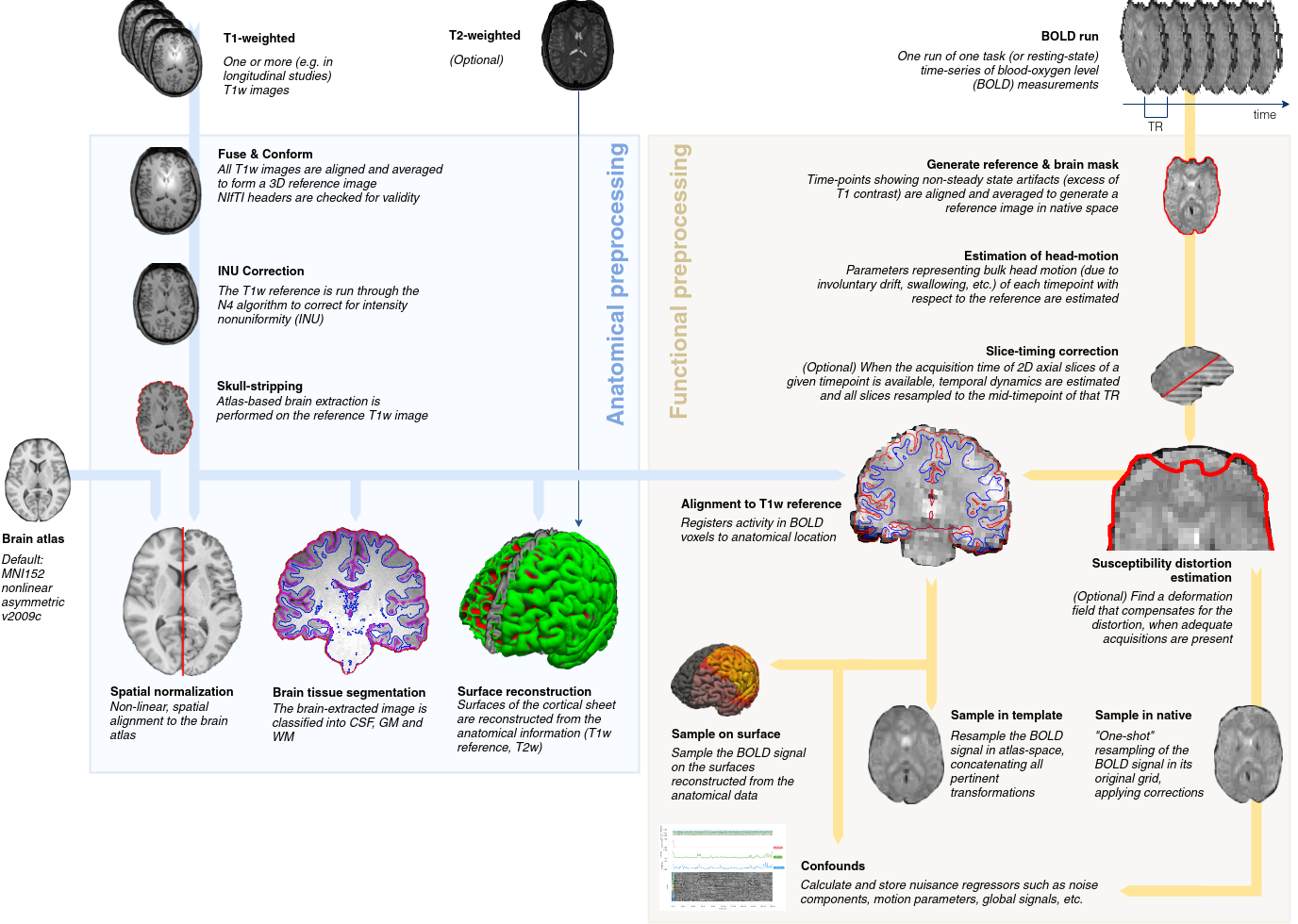

fMRIPrep: A Robust Preprocessing Pipeline for fMRI Data¶

fMRI data are HUGE!¶

If you'd like to download the preprocessed data to follow along, use this link:

https://virginia.box.com/s/79uda2ueln81wccy3dnxnxiz2paxywq0

Note that this is 345MB once unzipped!

Verify some of the preprocessing¶

In [ ]:
# load the grey matter segmented image
gm_img = image.load_img('fmriprep/sub-07/anat/sub-07_space-MNI152NLin2009cAsym_label-GM_probseg.nii.gz')
gm_img.shape
Out[ ]:
(193, 229, 193)
In [ ]:
193*229*193
Out[ ]:
8530021
In [ ]:
# load a run and check the shape
run2 = image.load_img('fmriprep/sub-07/func/sub-07_task-flanker_run-2_space-MNI152NLin2009cAsym_desc-preproc_bold.nii.gz')
run2.shape
Out[ ]:
(65, 77, 49, 146)
In [ ]:
np.prod(run2.shape[:-1])
Out[ ]:
245245
In [ ]:
plt.plot(run2.get_fdata()[35, 35, 28, :])
plt.plot(run2.get_fdata()[45, 25, 32, :])
Out[ ]:
[<matplotlib.lines.Line2D at 0x7f4c48a83310>]
No description has been provided for this image
In [ ]:
plotting.view_img(gm_img, symmetric_cmap=True,)

/home/per/anaconda3/envs/smiledev/lib/python3.10/site-packages/numpy/core/fromnumeric.py:771: UserWarning: Warning: 'partition' will ignore the 'mask' of the MaskedArray.
  a.partition(kth, axis=axis, kind=kind, order=order)
Out[ ]:

Verify the behavioral data¶

In [ ]:
# read in the behavioral data
df_1 = pd.read_table('fmriprep/sub-07/func/sub-07_task-flanker_run-1_events.tsv')
df_1['run'] = 1

df_2 = pd.read_table('fmriprep/sub-07/func/sub-07_task-flanker_run-2_events.tsv')
df_2['run'] = 2

df = pd.concat([df_1, df_2])

# fix the stim
df['Stimulus'] = [x.split('_')[0] for x in df['trial_type']]

# add log rt
df['log_rt'] = np.log(df['response_time'])
df.head()
Out[ ]:
onset duration trial_type response_time correctness StimVar Rsponse Stimulus cond run log_rt
0 0.0 2.0 incongruent_correct 0.584 correct 2 1 incongruent cond003 1 -0.537854
1 10.0 2.0 congruent_correct 0.492 correct 1 1 congruent cond001 1 -0.709277
2 20.0 2.0 congruent_correct 0.408 correct 1 1 congruent cond001 1 -0.896488
3 30.0 2.0 congruent_correct 0.347 correct 1 1 congruent cond001 1 -1.058430
4 42.0 2.0 incongruent_correct 0.502 correct 2 1 incongruent cond003 1 -0.689155
In [ ]:
# test if they are slower on incongruent trials
stats.ttest_ind(df.loc[df['Stimulus']=='congruent', 'log_rt'],
                df.loc[df['Stimulus']=='incongruent', 'log_rt'])
Out[ ]:
TtestResult(statistic=-6.857497566052861, pvalue=1.491034532007445e-08, df=46.0)
  • We see a significant slowdown for incongruent trials relative to congruent.

First level Generalized Linear Model (GLM)¶

Question: Is there any different in neural activity between congruent and incongruent conditions.

Generating a Design Matrix¶

  • First step is to set up the independent variables.
  • This will include the conditions, but also confounds to account for in the neural data.
In [ ]:
from nilearn.glm.first_level import make_first_level_design_matrix, FirstLevelModel
from nilearn.plotting import plot_design_matrix
In [ ]:
# read in the confounds
df_conf = pd.read_table('fmriprep/sub-07/func/sub-07_task-flanker_run-1_desc-confounds_timeseries.tsv')

# keep the most relevant
to_keep = ['csf',
'white_matter',
'tcompcor',
'std_dvars',
'dvars',
'framewise_displacement',
'rmsd',
't_comp_cor_00',
't_comp_cor_01',
't_comp_cor_02',
't_comp_cor_03',
't_comp_cor_04',
't_comp_cor_05',
'cosine00',
'cosine01',
'cosine02',
'non_steady_state_outlier00',
'non_steady_state_outlier01',
'trans_x',
'trans_x_derivative1',
'trans_x_power2',
'trans_x_derivative1_power2',
'trans_y',
'trans_y_derivative1',
'trans_y_derivative1_power2',
'trans_y_power2',
'trans_z',
'trans_z_derivative1',
'trans_z_power2',
'trans_z_derivative1_power2',
'rot_x',
'rot_x_derivative1',
'rot_x_derivative1_power2',
'rot_x_power2',
'rot_y',
'rot_y_derivative1',
'rot_y_power2',
'rot_y_derivative1_power2',
'rot_z',
'rot_z_derivative1',
'rot_z_derivative1_power2',
'rot_z_power2']
df_conf = df_conf[df_conf.columns[df_conf.columns.isin(to_keep)]]
df_conf = df_conf.dropna(axis=1)
df_conf.columns
Out[ ]:
Index(['csf', 'white_matter', 'tcompcor', 't_comp_cor_00', 't_comp_cor_01',
       't_comp_cor_02', 't_comp_cor_03', 't_comp_cor_04', 't_comp_cor_05',
       'cosine00', 'cosine01', 'cosine02', 'non_steady_state_outlier00',
       'non_steady_state_outlier01', 'trans_x', 'trans_x_power2', 'trans_y',
       'trans_y_power2', 'trans_z', 'trans_z_power2', 'rot_x', 'rot_x_power2',
       'rot_y', 'rot_y_power2', 'rot_z', 'rot_z_power2'],
      dtype='object')
In [ ]:
# pull events and define onsets and durations
tr = 2.0  # repetition time is 2 second
n_scans = 146  # the acquisition comprises 128 scans
frame_times = np.arange(n_scans) * tr

events = pd.DataFrame({#'trial_type': ['ev'+str(x).zfill(2) for x in df[df['run']==1].index],
                       'trial_type': df[df['run']==1]['Stimulus'],
                       'onset': df[df['run']==1]['onset'],
                       'duration': df[df['run']==1]['duration']})
events
Out[ ]:
trial_type onset duration
0 incongruent 0.0 2.0
1 congruent 10.0 2.0
2 congruent 20.0 2.0
3 congruent 30.0 2.0
4 incongruent 42.0 2.0
5 congruent 52.0 2.0
6 incongruent 64.0 2.0
7 incongruent 76.0 2.0
8 incongruent 88.0 2.0
9 congruent 102.0 2.0
10 congruent 116.0 2.0
11 incongruent 130.0 2.0
12 incongruent 144.0 2.0
13 congruent 154.0 2.0
14 incongruent 164.0 2.0
15 congruent 174.0 2.0
16 incongruent 184.0 2.0
17 incongruent 196.0 2.0
18 incongruent 208.0 2.0
19 congruent 222.0 2.0
20 congruent 234.0 2.0
21 congruent 246.0 2.0
22 congruent 260.0 2.0
23 incongruent 274.0 2.0
In [ ]:
# build the design matrix
hrf_model = 'glover'
X1 = make_first_level_design_matrix(
    frame_times, events, drift_model='polynomial', drift_order=3,
    add_regs=df_conf.to_numpy(),
    add_reg_names=list(df_conf.columns), hrf_model=hrf_model)
In [ ]:
plot_design_matrix(X1)
Out[ ]:
<Axes: label='conditions', ylabel='scan number'>
No description has been provided for this image

Fit the GLM¶

In [ ]:
run = 1
epi_file = 'fmriprep/sub-07/func/sub-07_task-flanker_run-%d_space-MNI152NLin2009cAsym_desc-preproc_bold.nii.gz'%run
mask_file = 'fmriprep/sub-07/func/sub-07_task-flanker_run-%d_space-MNI152NLin2009cAsym_desc-brain_mask.nii.gz'%run
fmri_glm = FirstLevelModel(t_r=tr,
                           mask_img=mask_file,
                           smoothing_fwhm=8)
fmri_glm = fmri_glm.fit(epi_file, design_matrices=X1)
In [ ]:
contrast_matrix = np.eye(X1.shape[1])
contrasts = dict([(column, contrast_matrix[i])
                      for i, column in enumerate(X1.columns)])
contrasts
Out[ ]:
{'congruent': array([1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 'incongruent': array([0., 1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 'csf': array([0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 'white_matter': array([0., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 'tcompcor': array([0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 't_comp_cor_00': array([0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 't_comp_cor_01': array([0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 't_comp_cor_02': array([0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 't_comp_cor_03': array([0., 0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 't_comp_cor_04': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 't_comp_cor_05': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 'cosine00': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 'cosine01': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 'cosine02': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 'non_steady_state_outlier00': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 'non_steady_state_outlier01': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 'trans_x': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 1.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 'trans_x_power2': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 'trans_y': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 'trans_y_power2': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 'trans_z': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 'trans_z_power2': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 'rot_x': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0., 0.]),
 'rot_x_power2': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0., 0.]),
 'rot_y': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0., 0.]),
 'rot_y_power2': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 0., 0.]),
 'rot_z': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0., 0.]),
 'rot_z_power2': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0., 0.]),
 'drift_1': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0., 0., 0.]),
 'drift_2': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0., 0.]),
 'drift_3': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 1., 0.]),
 'constant': array([0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0.,
        0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 0., 1.])}
In [ ]:
zmap = fmri_glm.compute_contrast(contrasts['incongruent']-contrasts['congruent'])
zmap.shape
Out[ ]:
(65, 77, 49)
In [ ]:
#del hfig
hfig = plotting.view_img(zmap,threshold=3.0,
                  symmetric_cmap=True,)
hfig

/home/per/anaconda3/envs/smiledev/lib/python3.10/site-packages/numpy/core/fromnumeric.py:771: UserWarning: Warning: 'partition' will ignore the 'mask' of the MaskedArray.
  a.partition(kth, axis=axis, kind=kind, order=order)
Out[ ]:

GLM Results¶

  • We see some Anterior Cingulate Cortex activation, as well as in visual attention regions for the incongruent relative to congruent trials.

MVPA Analysis¶

  • MVPA turns the standard regression on its head!

  • Instead of predicting neural activity at each voxel with the conditions of your experiment, it predicts thoughts/processes based on patterns of neural activity.

Single-trial Betas (STB)¶

  • To get started, we'll want to calculate the neural response for each trial, not just for the conditions.
In [ ]:
# create a mean mask from the two run masks
from nilearn.image import mean_img
from nilearn.masking import compute_epi_mask
mean_mask = mean_img(['fmriprep/sub-07/func/sub-07_task-flanker_run-1_space-MNI152NLin2009cAsym_desc-brain_mask.nii.gz',
          'fmriprep/sub-07/func/sub-07_task-flanker_run-2_space-MNI152NLin2009cAsym_desc-brain_mask.nii.gz'])
mean_mask = compute_epi_mask(mean_mask)
In [ ]:
# run the model for each run to get single trial betas
z_maps = []
conditions_label = []
session_label = []
for run in [1, 2]:
    # pull the events
    events = pd.DataFrame({'trial_type': ['ev'+str(x).zfill(2)
                                          for x in df[df['run']==run].index],
                           'onset': df[df['run']==run]['onset'],
                           'duration': df[df['run']==run]['duration']})

    # make the design matrix
    conf_file = 'fmriprep/sub-07/func/sub-07_task-flanker_run-%d_desc-confounds_timeseries.tsv' % run
    df_conf = pd.read_table(conf_file)
    df_conf = df_conf[df_conf.columns[df_conf.columns.isin(to_keep)]]
    df_conf = df_conf.dropna(axis=1)

    X1 = make_first_level_design_matrix(
        frame_times, events, drift_model='polynomial', drift_order=3,
        add_regs=df_conf.to_numpy(),
        add_reg_names=list(df_conf.columns), hrf_model=hrf_model)

    # fit the first level model
    epi_file = 'fmriprep/sub-07/func/sub-07_task-flanker_run-%d_space-MNI152NLin2009cAsym_desc-preproc_bold.nii.gz'%run
    #mask_file = 'fmriprep/sub-07/func/sub-07_task-flanker_run-%d_space-MNI152NLin2009cAsym_desc-brain_mask.nii.gz'%run
    fmri_glm = FirstLevelModel(t_r=tr,
                               mask_img=mean_mask,
                               smoothing_fwhm=4)
    fmri_glm = fmri_glm.fit(epi_file, design_matrices=X1)

    # extract the z maps for each event
    z_maps.extend([fmri_glm.compute_contrast(contrast_)
                   for contrast_ in events.trial_type.unique()])

    # extend the conditions and sessions
    stims = list(df.loc[df['run']==run, 'Stimulus'])
    conditions_label.extend(stims)
    session_label.extend([run]*len(stims))
In [ ]:
plot_design_matrix(X1)
Out[ ]:
<Axes: label='conditions', ylabel='scan number'>
No description has been provided for this image

Build a decoder, then train and test it¶

In [ ]:
from nilearn.decoding import Decoder
from sklearn.model_selection import LeaveOneGroupOut
In [ ]:
# define and fit the decoder
decoder = Decoder(estimator='svc_l1', mask=mean_mask,
                  standardize=False,
                  screening_percentile=10,
                  cv=LeaveOneGroupOut(),
                  scoring='accuracy')
decoder.fit(z_maps, conditions_label, groups=session_label)

# Return the corresponding mean prediction accuracy compared to chance
classification_accuracy = np.mean(list(decoder.cv_scores_.values()))
chance_level = 1. / len(np.unique(conditions_label))
print('Classification accuracy: {:.4f} / Chance level: {}'.format(
    classification_accuracy, chance_level))

/home/per/anaconda3/envs/smiledev/lib/python3.10/site-packages/sklearn/svm/_base.py:1250: ConvergenceWarning: Liblinear failed to converge, increase the number of iterations.
  warnings.warn(

Classification accuracy: 0.6667 / Chance level: 0.5
In [ ]:
# use a binomial test to assess significance
stats.binomtest(31, n=48, p=0.5, alternative='greater')
Out[ ]:
BinomTestResult(k=31, n=48, alternative='greater', statistic=0.6458333333333334, pvalue=0.02973168762688517)

What is it doing?¶

  • Splitting the data into training and test sets based on the run.
  • This is called Cross Validation (CV)

Trianing¶

  • For each training set, it will train the model to decode congruent vs. incongruent with the whole brain activity.
  • There are far to many voxels (i.e., features) relative to the number of events (observations), so we have to use fancy tricks:
    • One is to penalize the weights so that the model finds sparse solutions
    • Another is to toss voxels that do not have much variance between conditions

Testing¶

  • After training on one half of the data, the model attempts to predict on the other half of the data that it hasn't seen.
  • It saves out the accuracy of how well it was able to make these predictions, which we then report.

Plotting the weights used to predict condition¶

In [ ]:
#del hfig
hfig = plotting.view_img(decoder.coef_img_['incongruent'],
                  symmetric_cmap=True,)
hfig

/home/per/anaconda3/envs/smiledev/lib/python3.10/site-packages/numpy/core/fromnumeric.py:771: UserWarning: Warning: 'partition' will ignore the 'mask' of the MaskedArray.
  a.partition(kth, axis=axis, kind=kind, order=order)
Out[ ]:

MVPA Summary¶

  • We just scratched the surface of MVPA methods!
  • Nonetheless, it looks like we can decode from patterns of neural activity whether a participant is currently processing an incongruent or congruent stimulus.
  • The brain maps are too sparse to be interpretable.

Functional Connectivity¶


  • Brain regions do not work in isolation!
  • Another popular approach is to evaluate how regions coordinate their activity in support of cognitive processing

Reducing dimensionality¶

  • Correlating the activity of every pair of voxels would be both computationally and memory intensive.
  • We can use a pre-defined atlas to reduce dimensionality.
In [ ]:
from nilearn import datasets

# load the Harvard Oxford atlas
atlas = datasets.fetch_atlas_harvard_oxford('cort-maxprob-thr25-2mm',
                                             symmetric_split=True)
atlas_filename = atlas.maps
labels = atlas.labels
In [ ]:
# plot the regions
plotting.plot_roi(atlas_filename)
Out[ ]:
<nilearn.plotting.displays._slicers.OrthoSlicer at 0x7f4c3f694910>
No description has been provided for this image

Extracting the mean timeseries¶

  • Now we need to extract the average time series for each region in the atlas.
In [ ]:
from nilearn.maskers import NiftiLabelsMasker

masker = NiftiLabelsMasker(
    labels_img=atlas_filename,
    standardize="zscore_sample",
    standardize_confounds="zscore_sample",
    memory="nilearn_cache",
    verbose=5,
)

# we'll just do this for one run (this is run 1 or 2)
run = 1

# load in the confounds
conf_file = 'fmriprep/sub-07/func/sub-07_task-flanker_run-%d_desc-confounds_timeseries.tsv' % run
df_conf = pd.read_table(conf_file)
df_conf = df_conf[df_conf.columns[df_conf.columns.isin(to_keep)]]
df_conf = df_conf.dropna(axis=1)

# define the functional data
epi_file = 'fmriprep/sub-07/func/sub-07_task-flanker_run-%d_space-MNI152NLin2009cAsym_desc-preproc_bold.nii.gz'%run

# calculate the average time_series for each region
time_series = masker.fit_transform(epi_file,
                                   confounds=df_conf)

[NiftiLabelsMasker.wrapped] loading data from Nifti1Image(
shape=(91, 109, 91),
affine=array([[   2.,    0.,    0.,  -90.],
       [   0.,    2.,    0., -126.],
       [   0.,    0.,    2.,  -72.],
       [   0.,    0.,    0.,    1.]])
)
Resampling labels
________________________________________________________________________________
[Memory] Calling nilearn.maskers.base_masker._filter_and_extract...
_filter_and_extract('fmriprep/sub-07/func/sub-07_task-flanker_run-1_space-MNI152NLin2009cAsym_desc-preproc_bold.nii.gz',
<nilearn.maskers.nifti_labels_masker._ExtractionFunctor object at 0x7f4c3f695420>,
{ 'background_label': 0,
  'clean_kwargs': {},
  'detrend': False,
  'dtype': None,
  'high_pass': None,
  'high_variance_confounds': False,
  'keep_masked_labels': True,
  'labels': None,
  'labels_img': <nibabel.nifti1.Nifti1Image object at 0x7f4c3ffbfa30>,
  'low_pass': None,
  'mask_img': None,
  'reports': True,
  'smoothing_fwhm': None,
  'standardize': 'zscore_sample',
  'standardize_confounds': 'zscore_sample',
  'strategy': 'mean',
  't_r': None,
  'target_affine': None,
  'target_shape': None}, confounds=[             csf  white_matter    tcompcor  t_comp_cor_00  t_comp_cor_01  \
0    723.272209    732.168790  694.235870       0.000000       0.000000
1    702.694129    731.420873  669.740278       0.000000       0.000000
2    697.925974    730.133559  671.736824      -0.014434       0.107603
3    697.530126    729.532402  662.537518      -0.106150      -0.016312
4    692.269791    729.344624  667.760598       0.054444       0.062241
..          ...           ...         ...            ...            ...
141  691.364411    730.342335  673.658075       0.036158       0.121707
142  694.700405    729.848156  669.442853      -0.107641      -0.008486
143  690.736986    729...., sample_mask=None, dtype=None, memory=Memory(location=nilearn_cache/joblib), memory_level=1, verbose=5)
[NiftiLabelsMasker.transform_single_imgs] Loading data from fmriprep/sub-07/func/sub-07_task-flanker_run-1_space-MNI152NLin2009cAsym_desc-preproc_bold.nii.gz
[NiftiLabelsMasker.transform_single_imgs] Extracting region signals
[NiftiLabelsMasker.transform_single_imgs] Cleaning extracted signals
_______________________________________________filter_and_extract - 4.9s, 0.1min
In [ ]:
# check the shape (timepoints by regions)
time_series.shape
Out[ ]:
(146, 96)

Calculating pairwise correlations¶

  • Now we need to calculate the correlations between time_series for each pair of regions
In [ ]:
from nilearn.connectome import ConnectivityMeasure

correlation_measure = ConnectivityMeasure(
    kind="correlation",
    standardize="zscore_sample",
)
correlation_matrix = correlation_measure.fit_transform([time_series])[0]

# Plot the correlation matrix
# Mask the main diagonal for visualization:
np.fill_diagonal(correlation_matrix, 0)

# The labels we have start with the background (0),
# hence we skip the first label
# matrices are ordered for block-like representation
plotting.plot_matrix(
    correlation_matrix,
    figure=(10, 8),
    labels=labels[1:],
    vmax=0.8,
    vmin=-0.8,
    title="Correlations",
    reorder=True,
)
Out[ ]:
<matplotlib.image.AxesImage at 0x7f4c3db67010>
No description has been provided for this image

Plotting pairwise correlations on the brain¶

  • The matrix plot is a bit too dense to track.
  • We can instead plot this as a undirected graph connecting brain regions
In [ ]:
# extract the coordinates of the atlas regions
coords = plotting.find_parcellation_cut_coords(
    labels_img=atlas_filename)
In [ ]:
# We threshold to keep only the 1% of edges with the highest value
# because the graph is very dense
plotting.plot_connectome(
    correlation_matrix, coords,
    edge_threshold="99%", colorbar=True
)

plotting.show()
No description has been provided for this image

Connectivity Conclusions¶

  • We're just scratching the surface of functional connectivity!
  • Becky has been working on novel ways to extract functional regions of interest.
  • Fun additional approaches entail connectome predictive modeling and connectome fingerprinting.

Assignment due after Thanksgiving¶

  • We'll post an MRI analysis assignment that will be due the week after Thanksgiving.
  • We will still hold office hours, at least on Monday, to answer any questions.
  • Have a great weekend and break!
